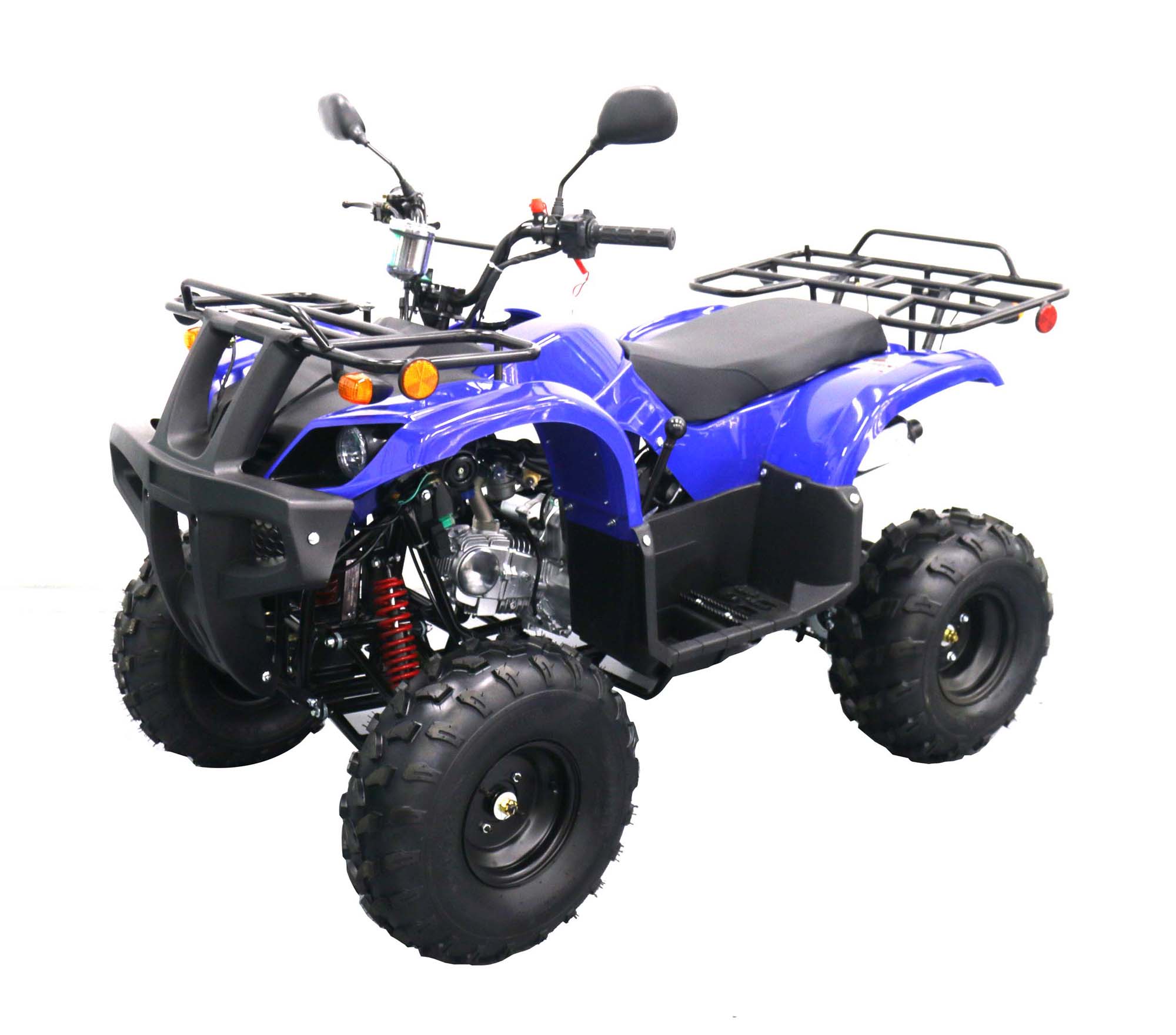

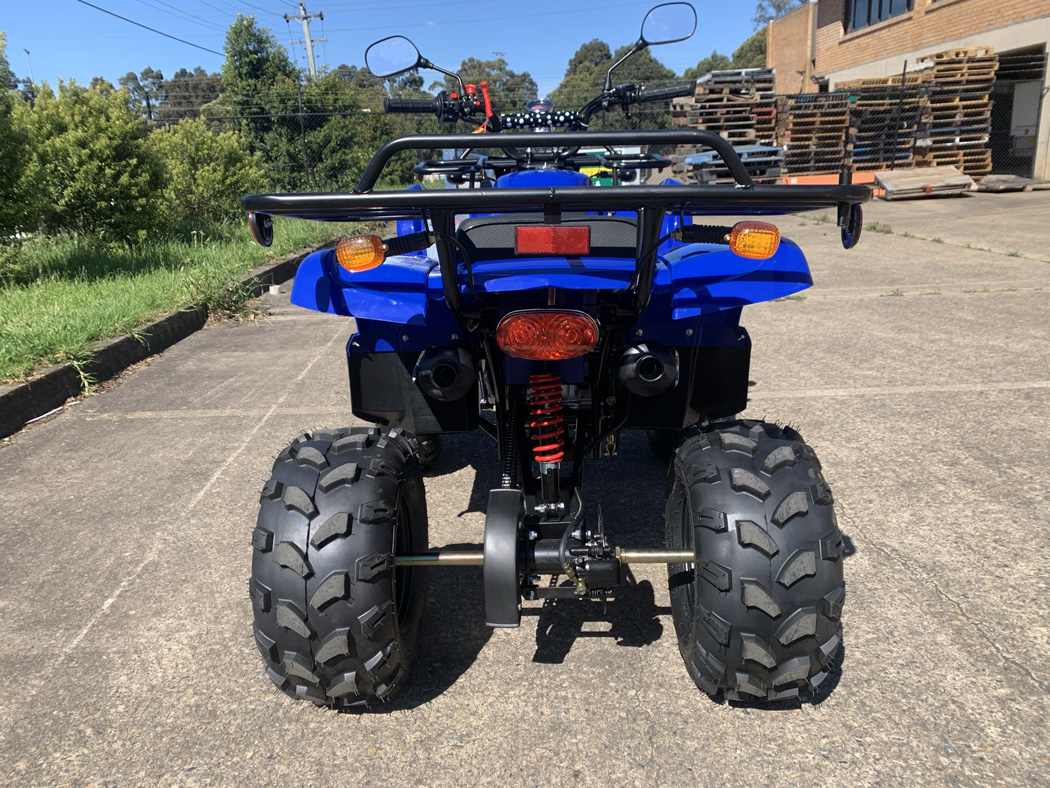

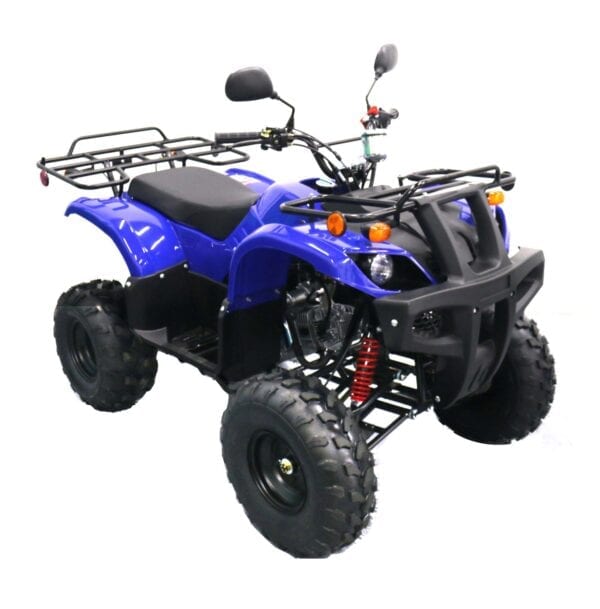

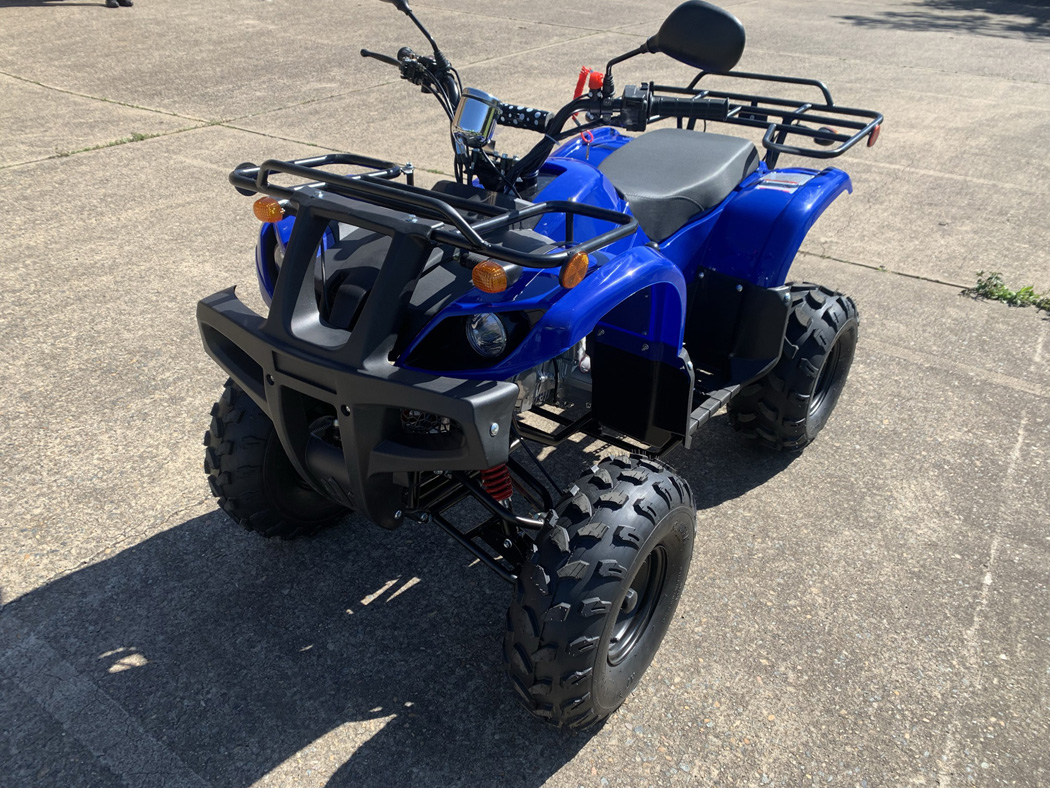

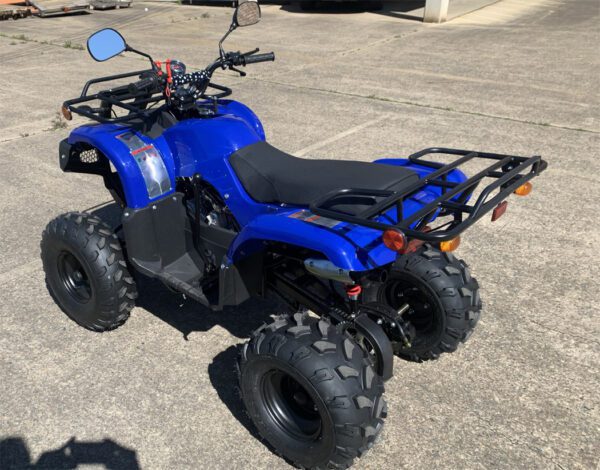

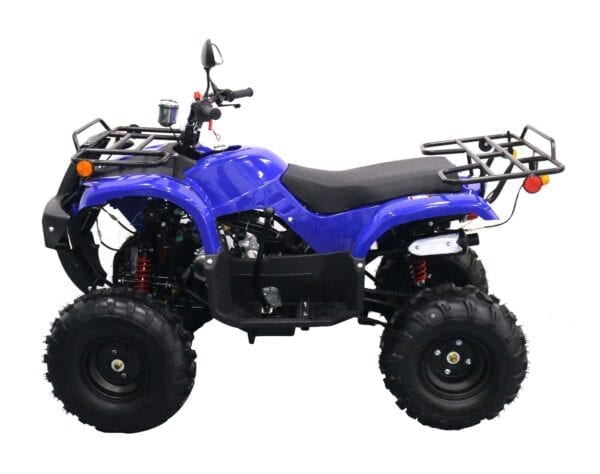

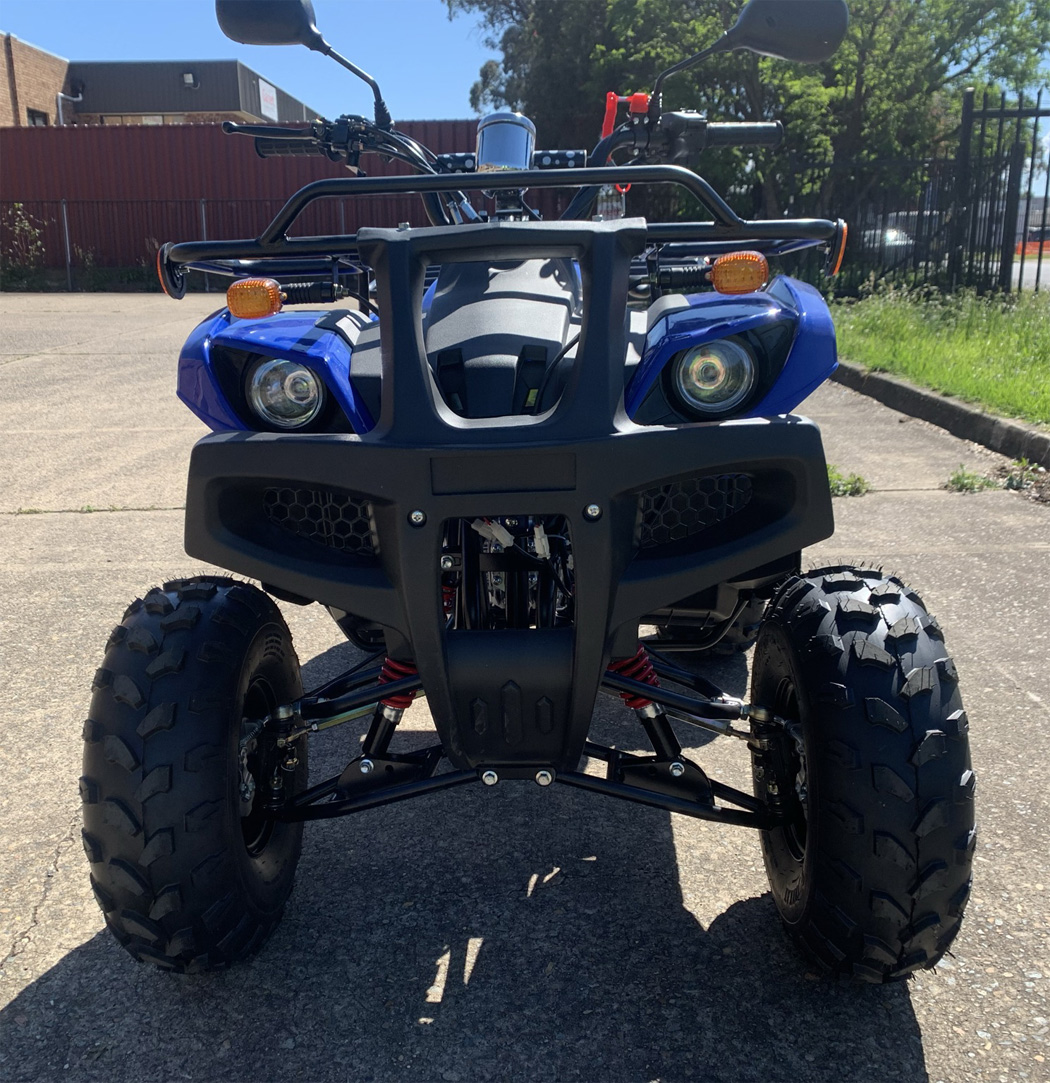

125CC ATV Locin Motor Quad Dirt Bike 4 Wheel Buggy Go kart Semi Auto 3+1 Ranger Blue

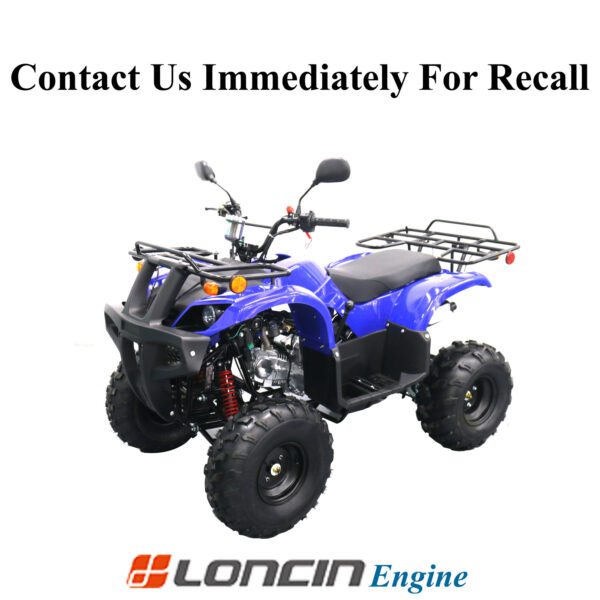

Recall notice:

Please contact us immediately if you purchased any 49cc, 125cc or 250cc quad bikes from us. The quad bikes we supply may not meet Australian Safty Standards and cause serious injuries or death during use.

Phone: 02 8772 7489

Email: budtrol@hotmail.com

Address: 2/4 Alfred Rd Chipping Norton NSW 2170



Item description:

Reduction gear box –to protect the clutch

Can carry a recommended maximum of 120kg

Soft rubber handle grips with kill switch

Ignition Keys + Engine kill switch button

Knobby tires, for greatest grip in all weather & track conditions

Chain drive

Heavy duty clutch

Durable frame which is protected with a thick layer of powder coating



Specifications:

Engine: 125CC four stroke single cylinder, air-cooled

Max torque: 8.0N.m

Max power: 6.0kw

Top speed:55km/hr

Brake system: Dual Drum Front & Rear Hydraulic mono Brakes)

Tank capacity: 7.5 Litre

Start model: Electric start

Bore stroke: 52.4×55.5mm

Front tyre: 19”x7”-8”

Rear tyre: 18”x9.5”-8”

Wheel base:111cm

Battery: 12V, 6.5Ah

L.W.H: 177x100x106cm

Net weight: 114kg

Suspension: Dual Front absorber & Rear Mono absorber

Gears: Automatic Centrifugal Clutch



Packing list:

• 1 x Mixture Bottle with capacity scale
• 1 xTool kit bag
• 1 xManual book.

Note: This item requires pickup from your cloest depot.
